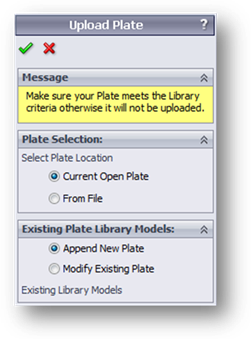

Upload a Plate to the plate library and its respective drawing.

Plates can be uploaded by file when supplied by TSD.

Plates can be removed from the plate library by selecting Modify Existing Plate.

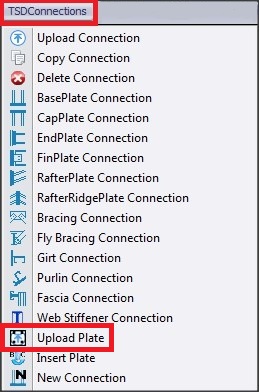

● Using this function on the Menu Bar click TSDConnections as shown below, then select the  Icon.

                                                                      ● Alternately use the   button located on the Command Manager Tool Bar under TSDConnectionstab as shown below.

                                                                                   Video Demonstration Link

                                                        Click this link to go to the TSDConnections Toolbar TSDConnections Toolbar
