This function allows the structure to be imported from other CAD & Analysis packages such as STAAD PRO, SPACEGASS or RISA 3D, you can import the structure as a part to either overlay onto existing structure for a check or alternatively to start the detailing process.

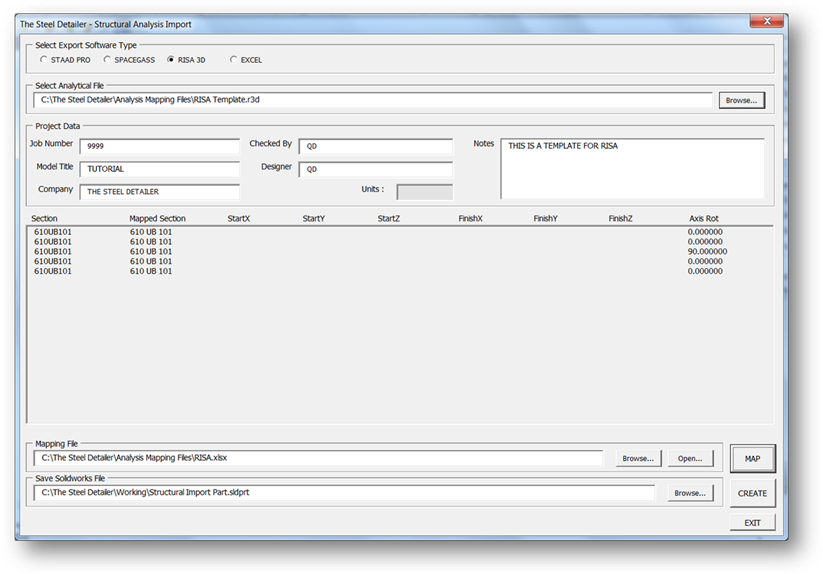

An example is shown below;

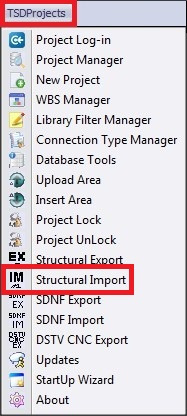

● Using this function on the Menu Bar click TSDProjects as shown below, then select the    Icon.

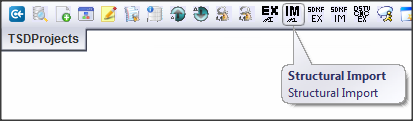

● Alternately use the  button located on the Command Manager Tool Bar under TSDProjects tab as shown below.







                                  Video Demonstration Link



Click this link to go to the TSDProjects Toolbar TSDProjects ToolBar
