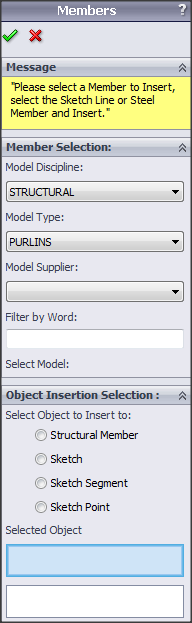

Detailer HelpIf you have setup
your filters to:
§ Discipline:
STRUCTURAL
§ Model
Type: PURLINS
§ Supplier:
TSD
The filters are
automatically set for selection on this Welded Member in the library.

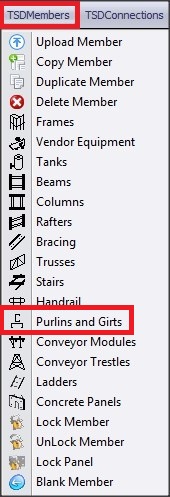

● Using this function on the Menu Bar click TSDMembers as
shown below, then select the
Icon.

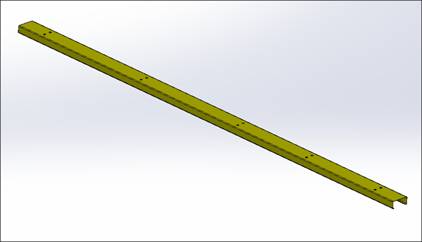

EXAMPLE
GIRT & PURLIN

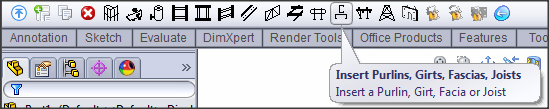

● Alternately use the
button located on the Command Manager Tool Bar
under TSDMember tab as shown below.
Use Example given under
inserting a Beam - Video
Demonstration Link
